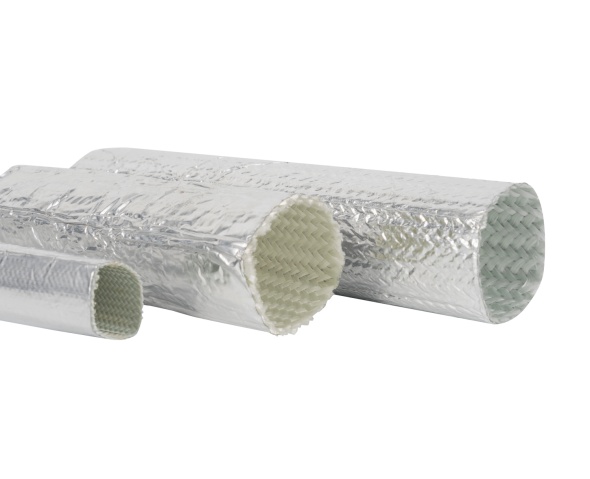

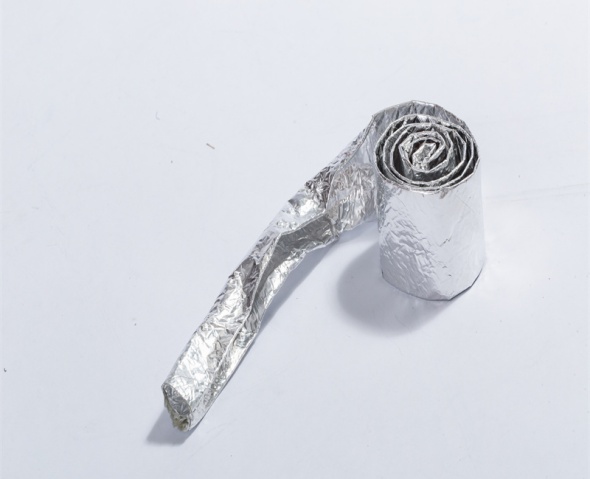

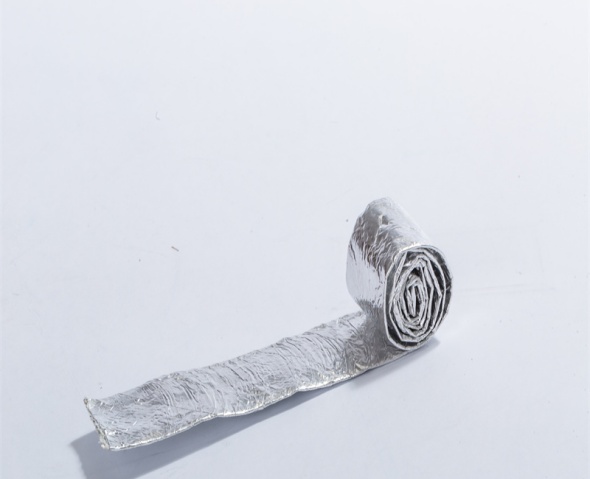

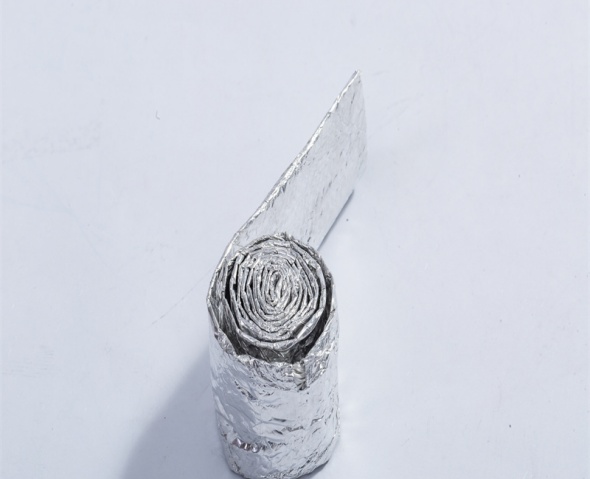

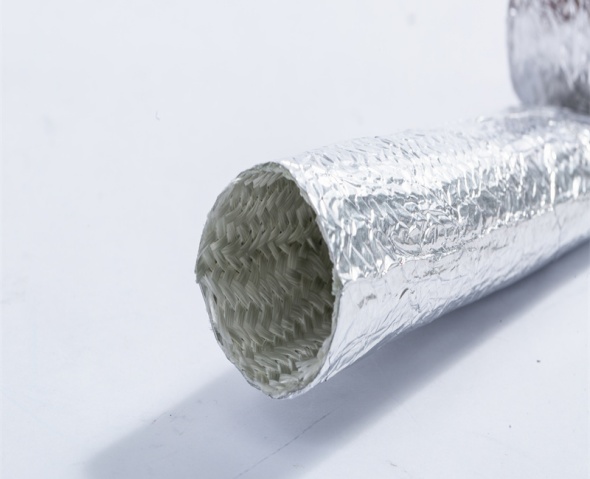

Aluminum Coated Fiberglass Sleeve

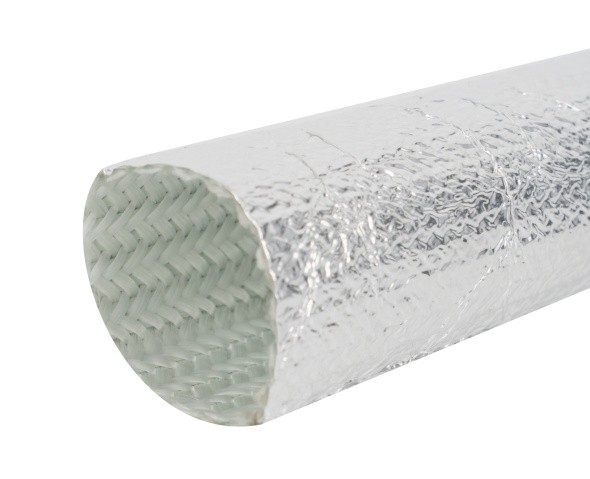

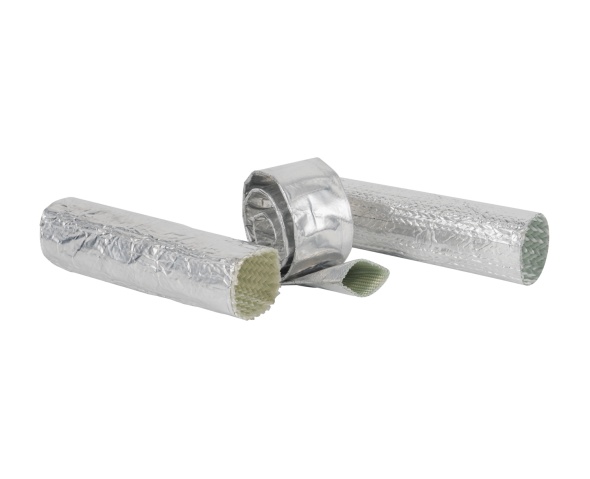

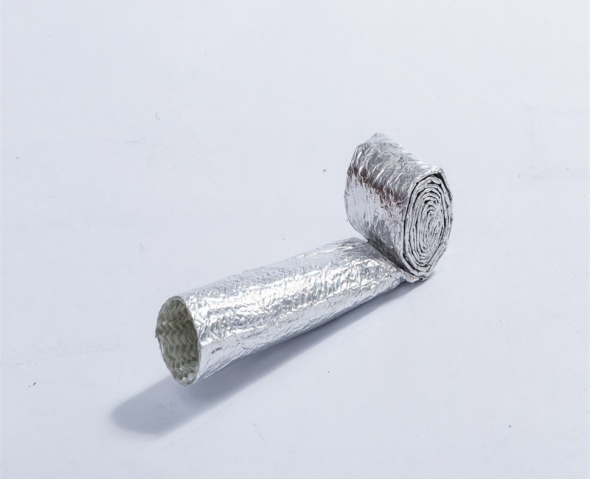

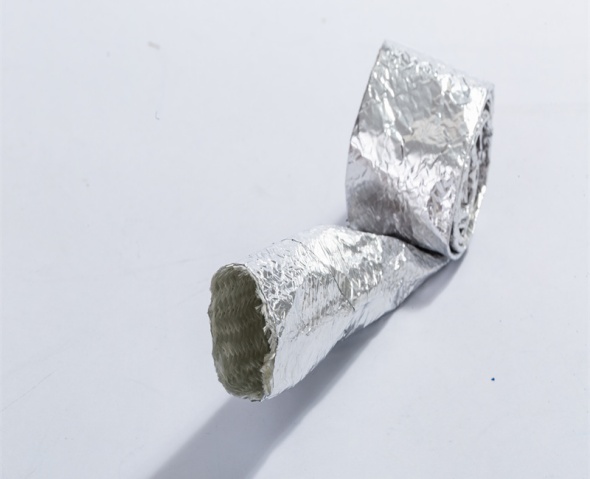

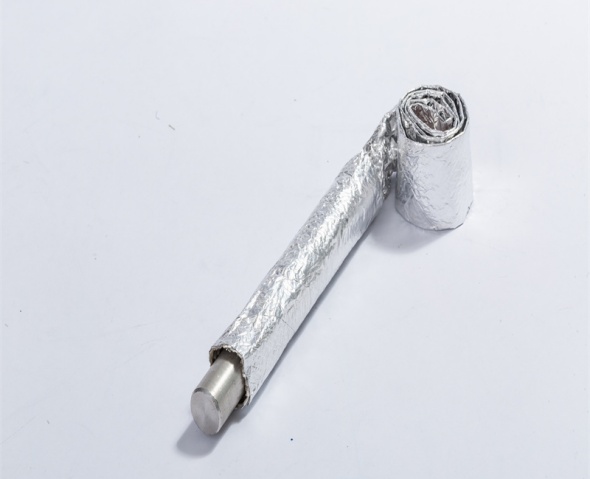

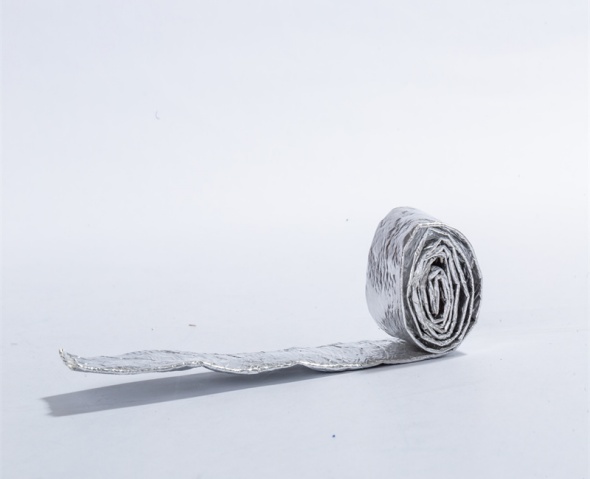

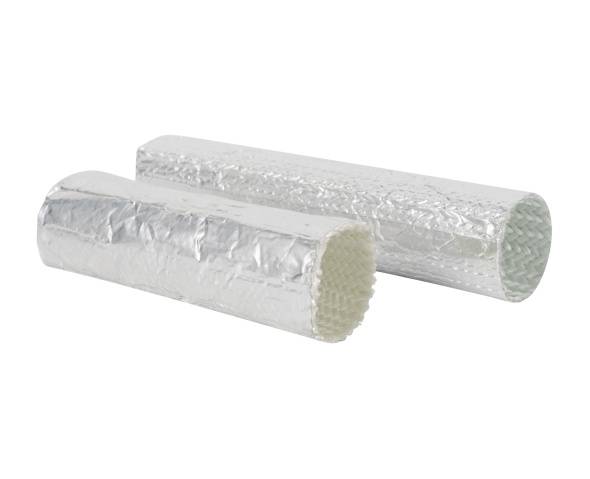

QIAN-ZE reflective aluminum coated fiberglass sleeve, lighter than other heat protection products, is specialized in protecting wires, cables, hoses, oil lines from extreme radiant heat by reflecting 90% of it away from sensitive electronics and hoses. Good thermal insulation and radiation resistant performance make QIAN-ZE aluminum coated fiberglass sleeve withstand continuous exposure to 250℃(482℉) that is widely used in any situation where protection from radiant heat is the primary concern, esp. in automotive under-the-hood protection.

Aluminum Coated Fiberglass Sleeve Get a Quote
  • Heat Resistant Wire Sleeve
  • High Temperature Braided Sleeving
  • High Temperature Insulation Sleeve
  • Thermal Insulation Tape High Temperature
  • Heat Resistant Wire Sleeve
  • High Temperature Braided Sleeving
  • High Temperature Insulation Sleeve
  • Thermal Insulation Tape High Temperature
  • Heat Resistant Wire Sleeve
  • High Temperature Braided Sleeving
  • High Temperature Insulation Sleeve
  • Thermal Insulation Tape High Temperature
  • Heat Resistant Wire Sleeve
  • High Temperature Braided Sleeving
  • High Temperature Insulation Sleeve
  • Thermal Insulation Tape High Temperature

Quick Reference of Aluminum Coated Fiberglass Sleeve

Materials

E-grade Fiberglass & Aluminum Foil

Recommended Operating Temperature


Continuous: 250℃(482℉) (Aluminum Foil)

650℃(1200℉)(E-grade Fiberglass)


Style

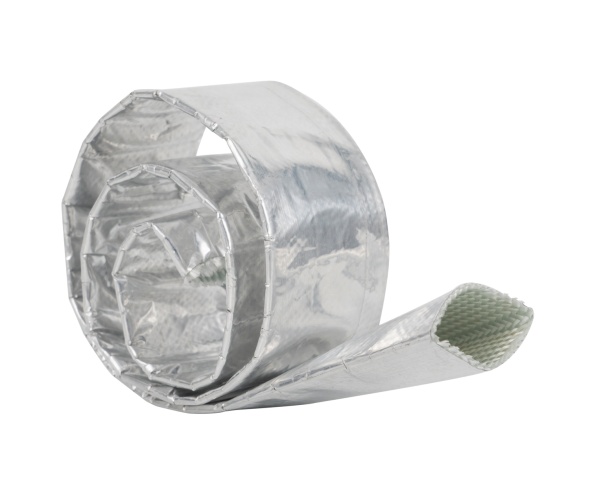

Tubular Style; Sewn Style

Size Range

Aluminum Sleeve: 15mm-300mm(5/8”-12”)

Color

Silver

Typical Industries

Transportation (Aerospace, Auto, Locomotive, Heavy Equipment)

Metals, Iron & Steel

Hose Fabrication

Oil & Gas

Application

High temperature and flame resistant

Radiation Resistant

Water/Oil Proof

Products

Latest News from XINMAO

Specification of Aluminum Coated Fiberglass Sleeve

Aluminum Coated Fiberglass Sleeve

XM Part No.

Inner Diameter

Wall Thickness

Roll Length

Tubular

Sewn

Tubular

Sewn

mm

inch

mm

inch

mm

inch

m/r

m/r

XM-AS-15

15

5/8

0.7

0.028

1

0.039

1

10

XM-AS-20

20

3/4

0.8

0.031

1

0.039

1

10

XM-AS-25

25

1

0.9

0.035

1

0.039

1

10

XM-AS-30

30

1-1/8

0.9

0.035

1

0.039

1

10

XM-AS-35

35

1-3/8

0.9

0.035

1

0.039

1

10

XM-AS-38

38

1-1/2

1.0

0.039

1

0.039

1

10

XM-AS-40

40

1-5/8

1.0

0.039

1

0.039

1

10

XM-AS-45

45

1-3/4

1.0

0.039

1

0.039

1

10

XM-AS-50

50

2

1.0

0.039

1

0.039

1

10

XM-AS-55

55

2-1/4

1.2

0.047

1

0.039

1

10

XM-AS-60

60

2-3/8

1.3

0.051

1

0.039

1

10

XM-AS-65

65

2-1/2

1.3

0.051

1

0.039

1

10

XM-AS-70

70

2-3/4

1.4

0.055

1

0.039

1

10

XM-AS-75

75

3

1.5

0.059

1

0.039

1

10

XM-AS-80

80

3-1/8

1.8

0.071

1

0.039

1

10

XM-AS-85

85

3-1/4

2.0

0.079

1

0.039

1

10

XM-AS-90

90

3-1/2

2.2

0.087

1

0.039

1

10

XM-AS-95

95

3-3/4

2.5

0.098

1

0.039

1

10

XM-AS-100

100

4

3.0

0.118

1

0.039

1

10

XM-AS-300

300

12

4.0

0.157

1

0.039

1

10


Aluminum Coated Fiberglass Sleeve
